An Introduction to CPU Virtualization

lyc8503

2024-03-16

This article is currently an experimental machine translation and may contain errors. If anything is unclear, please refer to the original Chinese version. I am continuously working to improve the translation.

In our daily development, we frequently use VPS services from major cloud providers (such as Alibaba Cloud, GCP, etc.) and virtual machines on our personal computers (like VMware, PVE, etc.).

As application-level developers, we can enjoy the benefits of virtualization without needing to understand the underlying implementation details. When it comes to the core CPU virtualization technology, we often gloss over it with just a brief mention.

Recently, out of curiosity, I looked up more resources and have compiled some information on CPU virtualization here.

Overview

Without hardware virtualization support, the x86 instruction set has four privilege levels: Ring0 to Ring3. The OS kernel runs at Ring0, while user-space programs run at Ring3. The virtual memory mechanism provides each process with an isolated address space.

In this scenario, due to the lack of CPU instructions capable of isolating multiple kernel states, running multiple independent operating systems on the same machine becomes challenging. QEMU achieves full system simulation entirely in user mode through recompilation, but at the cost of significant performance overhead. (I even built a purely interpreted “youth edition” of QEMU once.)

To address this issue, both Intel and AMD introduced their own hardware virtualization solutions—VT and SVM, respectively. The following discussion will focus on Intel’s VT-x.

In VT-x, Intel introduced a series of instructions to support hardware virtualization.

Intel Mnemonic	Description
INVEPT	Invalidate Translations Derived from EPT
INVVPID	Invalidate Translations Based on VPID
VMCALL	Call to VM Monitor
VMCLEAR	Clear Virtual-Machine Control Structure
VMFUNC	Invoke VM function
VMLAUNCH	Launch Virtual Machine
VMRESUME	Resume Virtual Machine
VMPTRLD	Load Pointer to Virtual-Machine Control Structure
VMPTRST	Store Pointer to Virtual-Machine Control Structure
VMREAD	Read Field from Virtual-Machine Control Structure
VMWRITE	Write Field to Virtual-Machine Control Structure
VMXOFF	Leave VMX Operation
VMXON	Enter VMX Operation

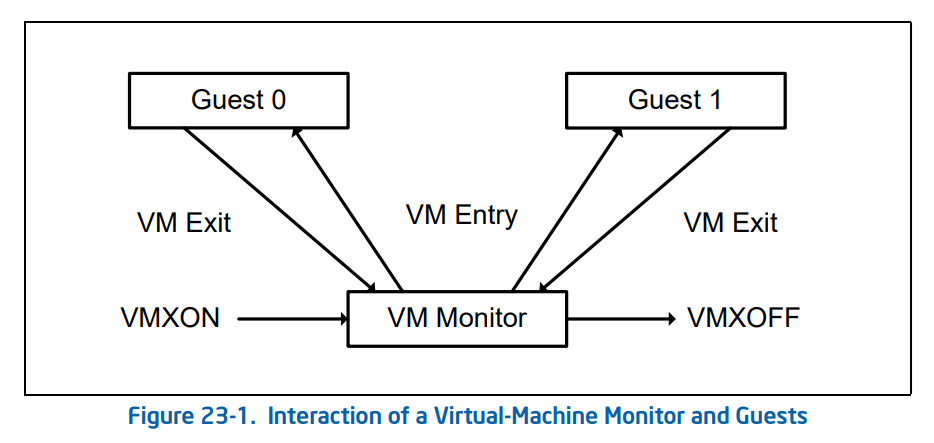

Interaction between VMM and Guest

VT-x introduces two additional CPU modes:

VMX Root Operation Mode: Entered via the VMXON instruction, where the host becomes the Hypervisor.
VMX Non-Root Operation Mode: The mode in which the Guest operates. Entered from VMX Root mode via VMLAUNCH. This mode restricts access to sensitive resources—any such access triggers a VM exit, returning control to VMX Root.

The VMX lifecycle is as follows:
Software enters VMX operation mode by executing the VMXON instruction.
The VMM can enter a Guest VM via VM entries (only one VM can run at a time). The VMM uses VMLAUNCH (for the first entry) and VMRESUME (to resume from VMM) to initiate a VM entry, and regains control through VM exits.
Upon a VM exit, control is transferred to a VMM-specified entry point. After handling the reason for the exit, the VMM resumes the VM via another VM entry.
When the VMM wants to stop and exit VMX operation mode, it executes the VMXOFF instruction.

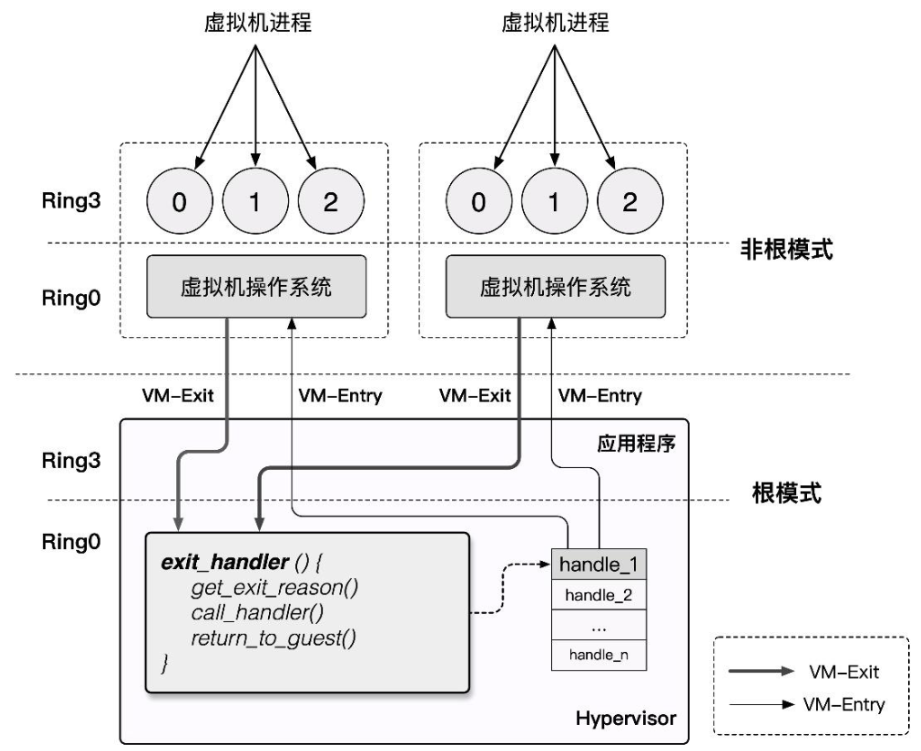

VMX Root and Non-Root Modes

VMX Root is analogous to Ring0 privilege, while the Guest running in VMX Non-Root is similar to Ring3. Access requests to privileged resources (such as privileged registers) from the Guest are handed over to the VM-exit handler in VMX Root. The VMX Root can schedule and manage multiple Guests concurrently.

VMCS

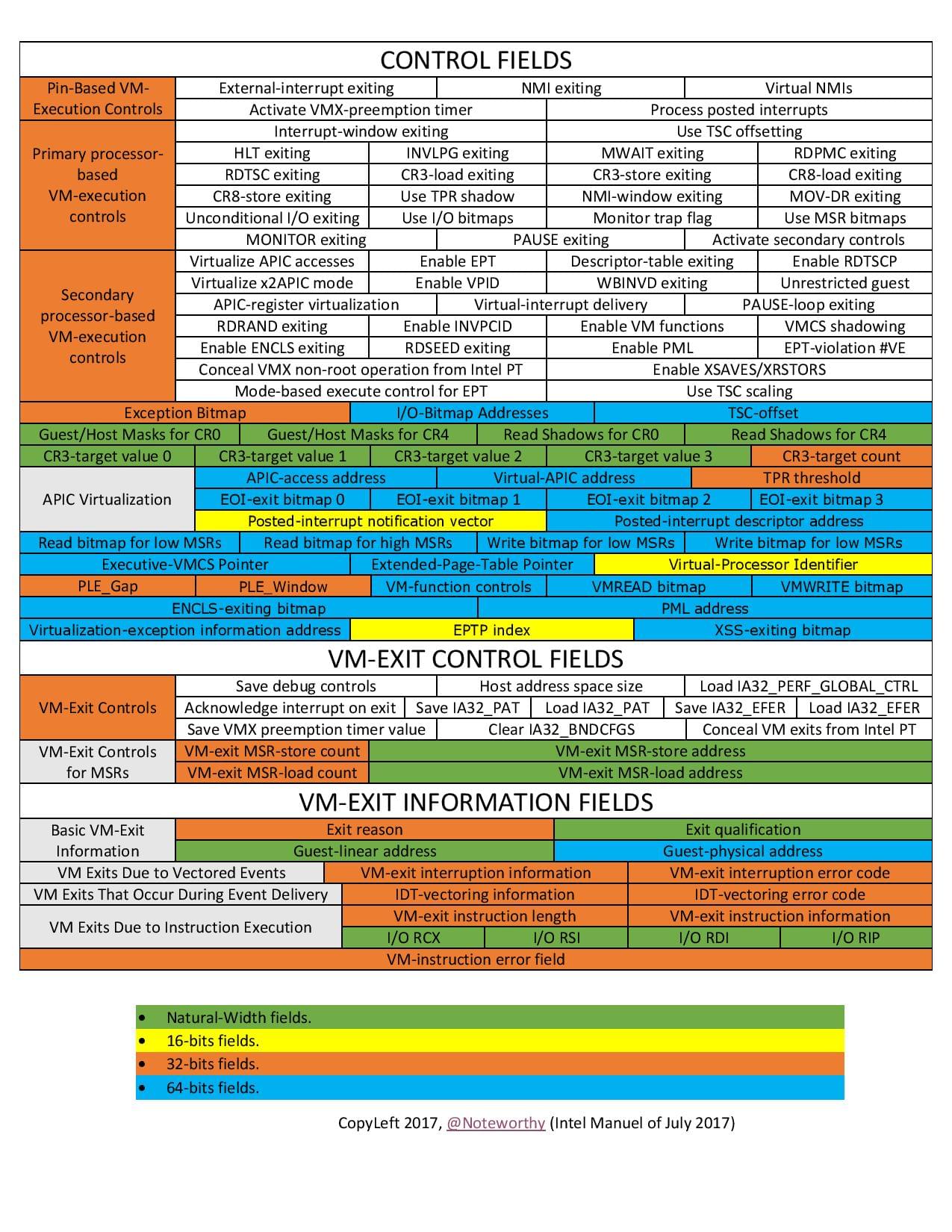

The VMCS (Virtual Machine Control Structure) is a data structure used to store the state of both the Guest and the Host. It primarily holds register states (for saving and restoring execution context) and various control flags that govern VM behavior.

The VMCS cannot be accessed directly; instead, it must be read from or written to using the VMREAD and VMWRITE instructions.

VMCS VMCS

EPT

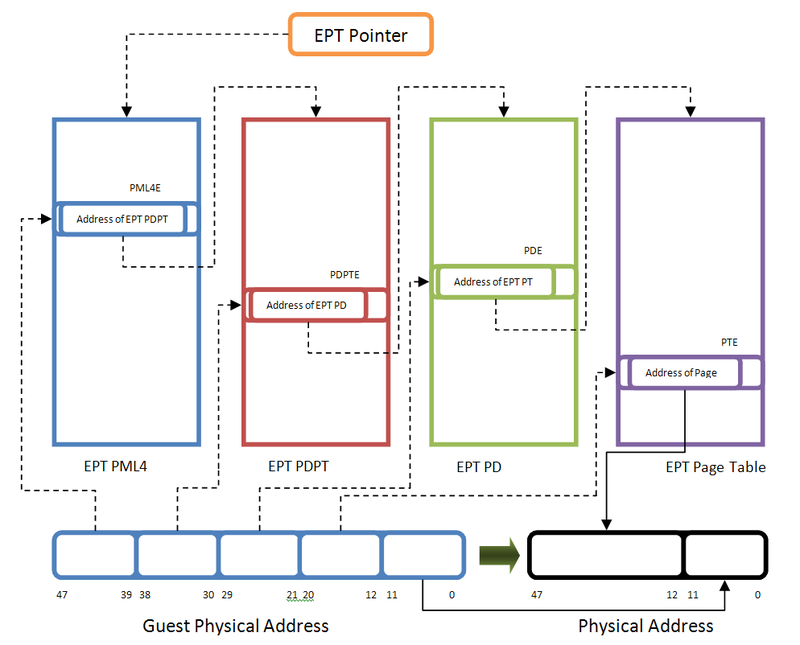

EPT (Extended Page Table) functions similarly to regular page tables by providing address translation.

The CPU can translate physical memory accesses in VMX Non-Root mode into accesses to actual host physical addresses according to the EPT mappings.

In typical virtual machines, each Guest’s physical address space is independently mapped to different regions of the host’s physical memory, allowing them to run isolated and independently.

EPT Translation

Like regular page tables on the host, EPT also supports access control (Read, Write, Execute). This access control capability has proven crucial in hypervisor-assisted debugging: by removing RWE permissions from specific memory regions of a running program, any access to those regions triggers a VM exit. This allows tracing the behavior of the target program and enables further manipulation.

More Practical Applications

Hardware virtualization was initially used primarily to run multiple operating systems on a single bare-metal machine. In recent years, it has also found applications in software debugging, binary security, and other domains:

Common virtualization platforms (e.g., VMware, VirtualBox, Hyper-V, PVE, ESXi)
Hypervisor-assisted debuggers like HyperDbg
Operating systems and antivirus software leveraging Virtualization-Based Security (e.g., sandboxes)
