TL;DR
My HomeLab finally welcomed its second server, officially entering the era of compute-storage separation.
First, the final result: LGA3647 platform + dual Platinum 8259CL (48c96t total) + 256GB Optane Persistent Memory (PMem)

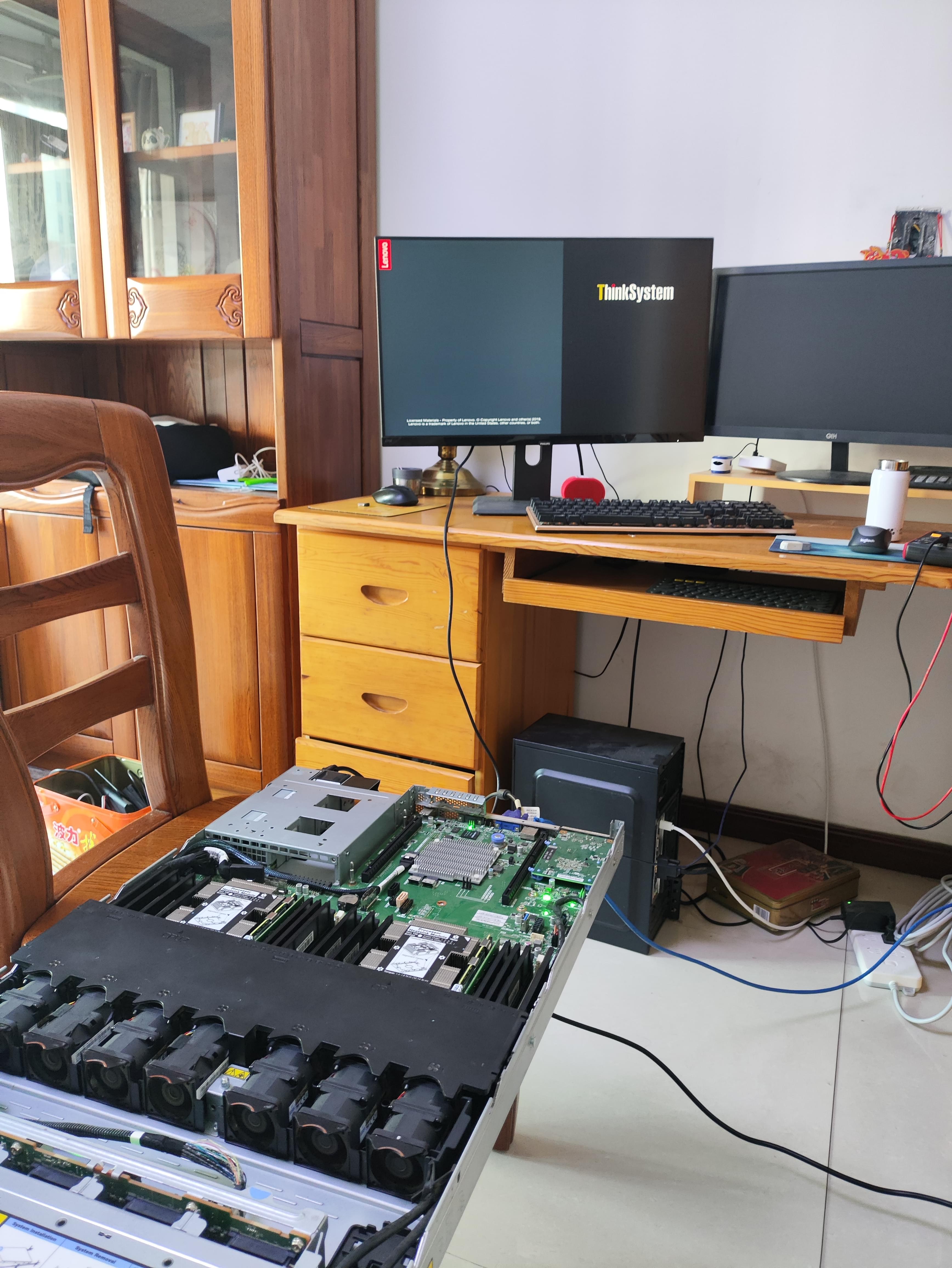

Successfully powered on
Bill of Materials
| / | Model | Price | Notes |
|---|---|---|---|
| CPU | Platinum 8259CL ×2 | 290 RMB | Cheap AWS cast-offs, great deal, but requires motherboard power unlock (see below) |
| Chassis | Lenovo HR630x | 450 RMB + 80 RMB shipping | Full fan set + dual heatsinks + single PSU + backplane, includes a dual-port 10G OCP NIC; no drive bays or riser |
| RAM | 8GB 2R×8 2133MHz ×2 | 137 RMB | Required for Optane operation |
| Optane Memory | Gen1 128GB ×2 | 340 RMB | Main memory |
| Test CPU | Silver 4110 | 15 RMB | Optional, just for unlocking 8259CL power; easier with a test CPU, |
| USB to GPIO | MCP2221A | 42 RMB | Used to unlock motherboard power limit |
| Screwdriver | LGA3647 Screwdriver (T30 Torx) | 8.9 RMB | For heatsink screws; this type isn’t very common |
Total cost: 1360.9 RMB
Performance Benchmarks
All tests below were conducted with default BIOS settings. At this configuration, the CPU can boost to 3.1GHz on all cores and 3.5GHz on a single core, with peak CPU power draw around 400W. Disabling turbo reduces power by ~50–100W but sacrifices 20–25% performance, so I kept it enabled.

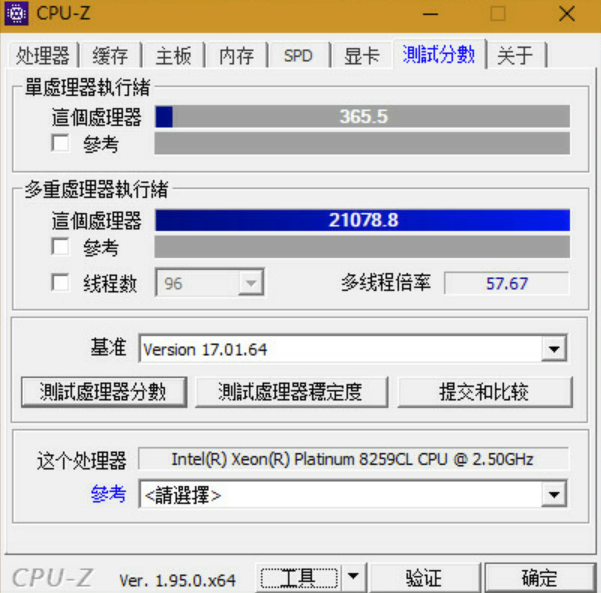

CPU-Z result in Windows PE: single-core 365, multi-core 21078

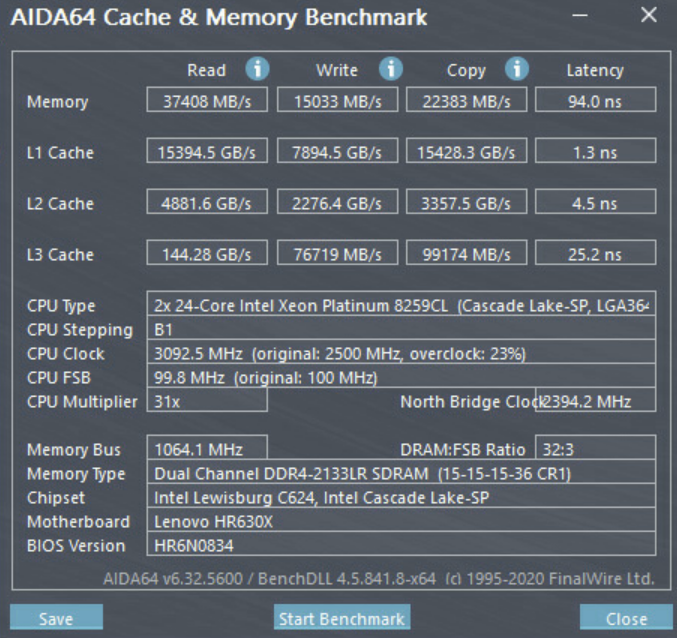

AIDA64 memory test in Windows PE. Uncertain if AIDA64 accounts for PMem, and I only used dual-channel, so treat this as entertainment

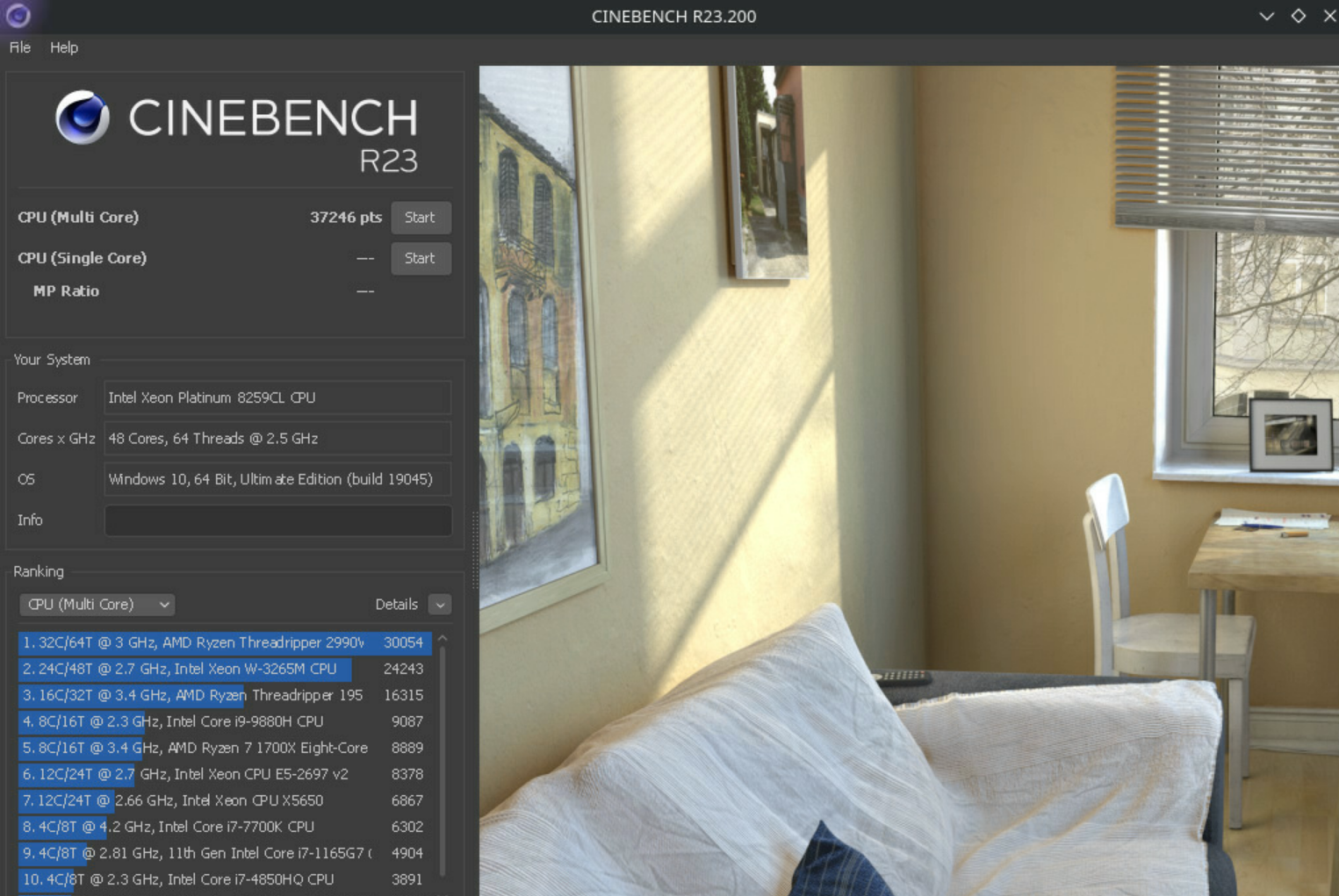

Cinebench R23 in Linux. Due to Wine issues, only 64 threads were recognized, score: 37246
Sysbench results using the same script commonly used for VPS reviews (fusion monster script), single-core 951, multi-core 75249:
1 | # sysbench cpu --threads=96 --cpu-max-prime=10000 --events=1000000 --time=10 run |
Same sysbench memory benchmarks:
1 | # sysbench --test=memory --num-threads=1 --memory-block-size=1M --memory-total-size=102400G --memory-oper=read --max-time=5 --memory-access-mode=seq run |
Selected benchmarks from Phoronix Test Suite (common ones, not too time-consuming). Full online results here:
1 | Percentile Classification Of Current Benchmark Run |
It performs well in CPU-heavy tests like OpenSSL/Stress-NG, matching or even beating the 9950X. However, in compilation workloads, it only competes with consumer-grade DDR5 systems like the 9700X or 13700K. I’m not sure if this is due to Optane being used as a system drive (causing memory-disk contention) or just the limited dual-channel bandwidth. I plan to upgrade to more memory channels later… will update if anything changes.
For detailed noise and power consumption tests, see the fan speed control section below.
Background & Selection Rationale
Recently, I’ve had a lot of local data requiring Spark and Python analysis. My previous 10900 platform had a motherboard fault under heavy load (now fixed), and I was just itching to build a new machine anyway, so I decided to upgrade my HomeLab.
I initially considered upgrading to AMD’s 9950X (2800 RMB) or Intel’s Ultra7 265K (1700 RMB), but DDR4 prices skyrocketed recently. Just adding 64GB of RAM would cost another 2000+, and new-gen motherboards aren’t cheap either. A full build would easily exceed 5000 RMB—way over my 1000–2000 RMB budget. I decided to wait a few generations.
Motherboard
To finally fulfill my long-standing regret of never diving into Xeon builds since the E5 days, I decided to go full rack-mount server.
While browsing Taobao, I noticed LGA3647 platforms have now hit rock-bottom prices. With such affordability, I chose to go new instead of old, leaving the E5 era behind.
Dell R740 platforms (same generation) are still not widely retired, with chassis still costing nearly 5000 RMB. Other budget options included the Inspur SA5212M5 (1100 RMB), Foxconn RM760-FX (700 RMB), and Lenovo HR650x (~700 RMB). The Inspur was pricier, the Foxconn had almost no public documentation online, but the Lenovo HR650x had full official documentation and some community guides. Sold. (I ended up with the HR630x—same motherboard as HR650x, but 1U chassis with less expandability. Docs are interchangeable, and it’s 200 RMB cheaper, at this price, even stripping the board for parts is profitable)
The HR630x comes in two motherboard variants: 24 or 16 DIMM slots. Mine has the 24-slot version, plus three PCIe 3.0 x16 slots (half-height), and support for up to 8 U.2 NVMe drives (with backplane). For 450 RMB, the seller included all fans, dual CPU heatsinks, U.2 backplane and cables, a 550W PSU, and even threw in a dual-port 10G OCP NIC.

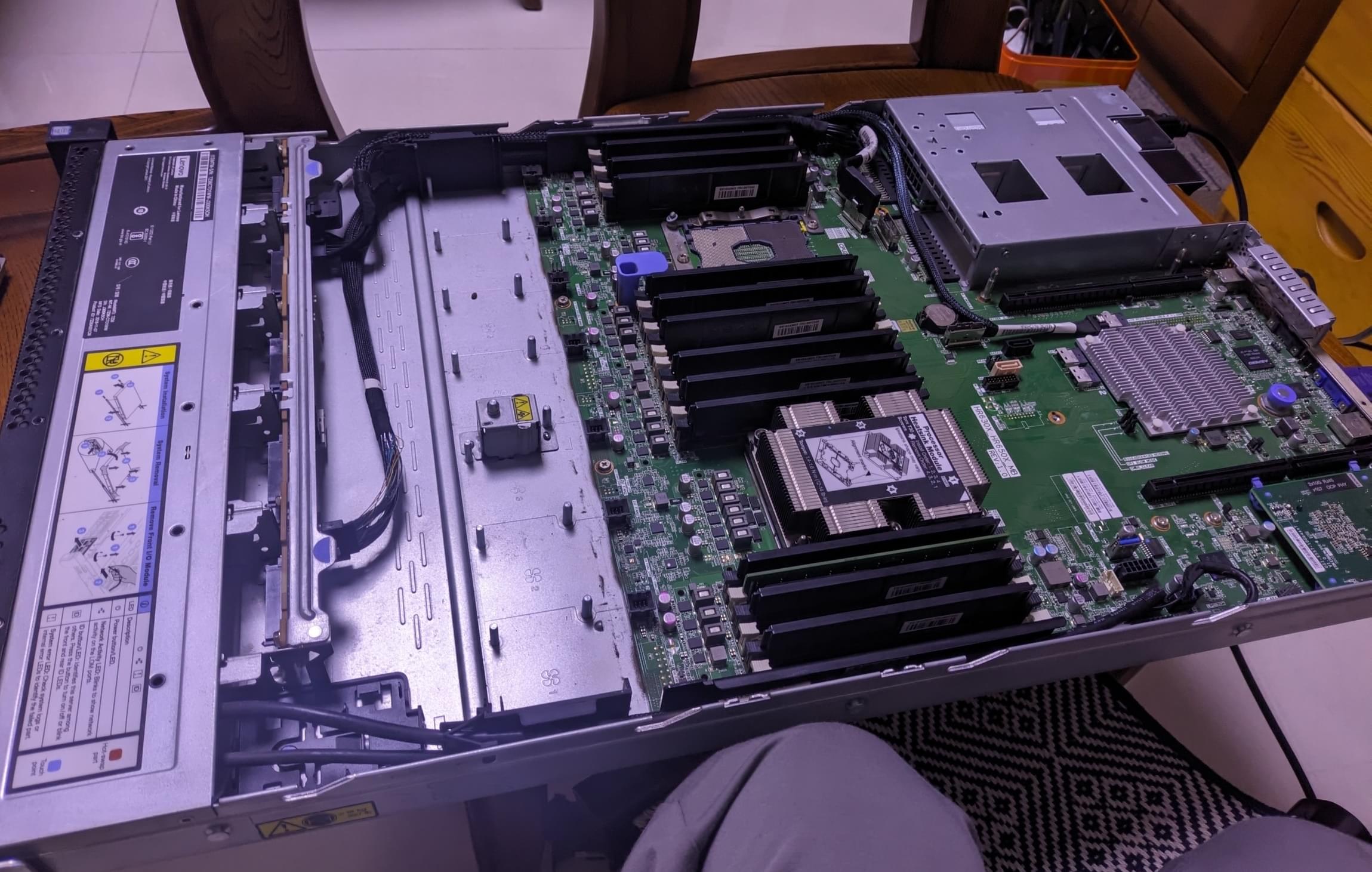

Delivery guy helped carry it upstairs. Some scratches on the case, dusty fans, average condition but fully functional
CPU
With the platform chosen, I turned to CPUs. I was initially torn between first-gen Xeon Scalable Gold 6138 (30¥) and Platinum 8175M (70¥). But then I stumbled upon the second-gen Platinum 8259CL, and the decision was instant. Despite modest performance gains and a 150¥ price tag, it’s the only second-gen Xeon that supports Optane Persistent Memory, drastically reducing large-capacity memory costs. It’s currently the only sub-200¥ second-gen Xeon—everything else costs at least a grand. Game over.
Of course, it’s cheap for a reason: as an OEM CPU, it has a 210W TDP, exceeding the standard 205W limit for these Xeons. On the HR630x, it won’t boot by default. You’ll need an MCP2221A adapter to reprogram the VRM controller and unlock the power limit. Details below.

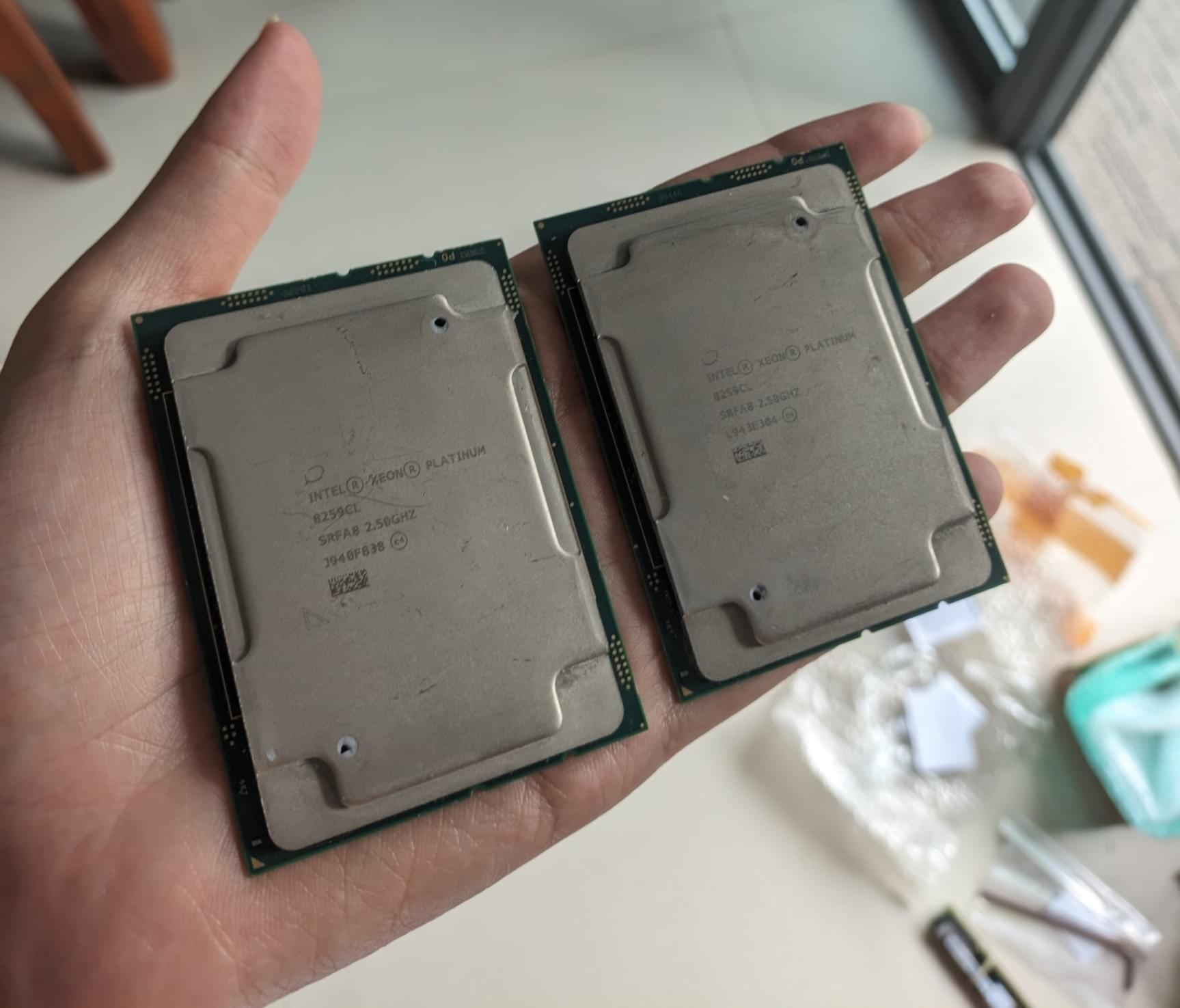

Massive LGA3647 CPUs ×2
Memory
DDR4 prices went absolutely bananas recently (Oct 2025)—never thought near-EOL DDR4 would surge like this. So, the second-gen Xeon’s support for first-gen Optane Persistent Memory became a lifesaver. This is it:

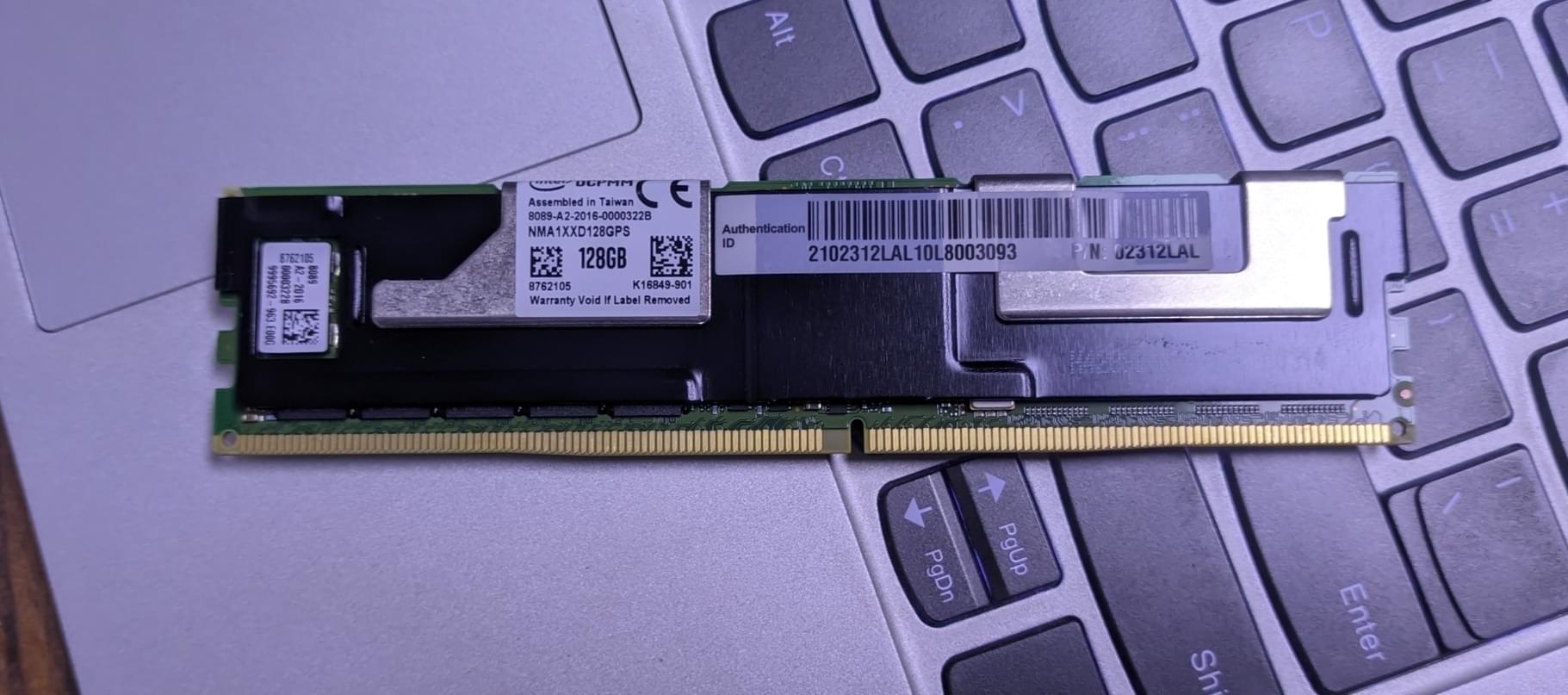

Looks just like a regular RAM stick with a heatspreader
Intel’s abandoned black magic tech. Uses standard DIMM slots, speed between traditional RAM and SSD, and can be configured in BIOS as either system memory or a block device. Yep, you can choose whether it acts as RAM or disk. How cool is that? (x)
Since it only works with specific CPUs and motherboards, it’s much cheaper than regular RAM. My 128GB PMem stick cost only 170¥—still up in price, but nothing compared to 1500¥+ for a 128GB DDR4 ECC stick. Total win.
According to the manual, Optane (DCPMM) must be paired with DRAM in cache mode—one PMem and one DRAM stick per channel. I cut corners with two 8GB 2R×8 2133MHz DDR4 sticks, below the manual’s recommended 16GB minimum, but it booted fine and was recognized.
Guides & Pitfalls
Unlocking VRM Power Limit
The first thing to do after unboxing is unlock the VRM power limit—otherwise, the 8259CL won’t boot. (Good news: most motherboards expose the required TTL pins; see the linked thread.)
The method comes from a ServeTheHome forum post. You need an MCP2221A module: one end connects to your PC, the other via TTL to the motherboard, then write a new power limit. The original post provides the tool, but I first tried JDDKCN/KCNVrmModTool, which worked perfectly.

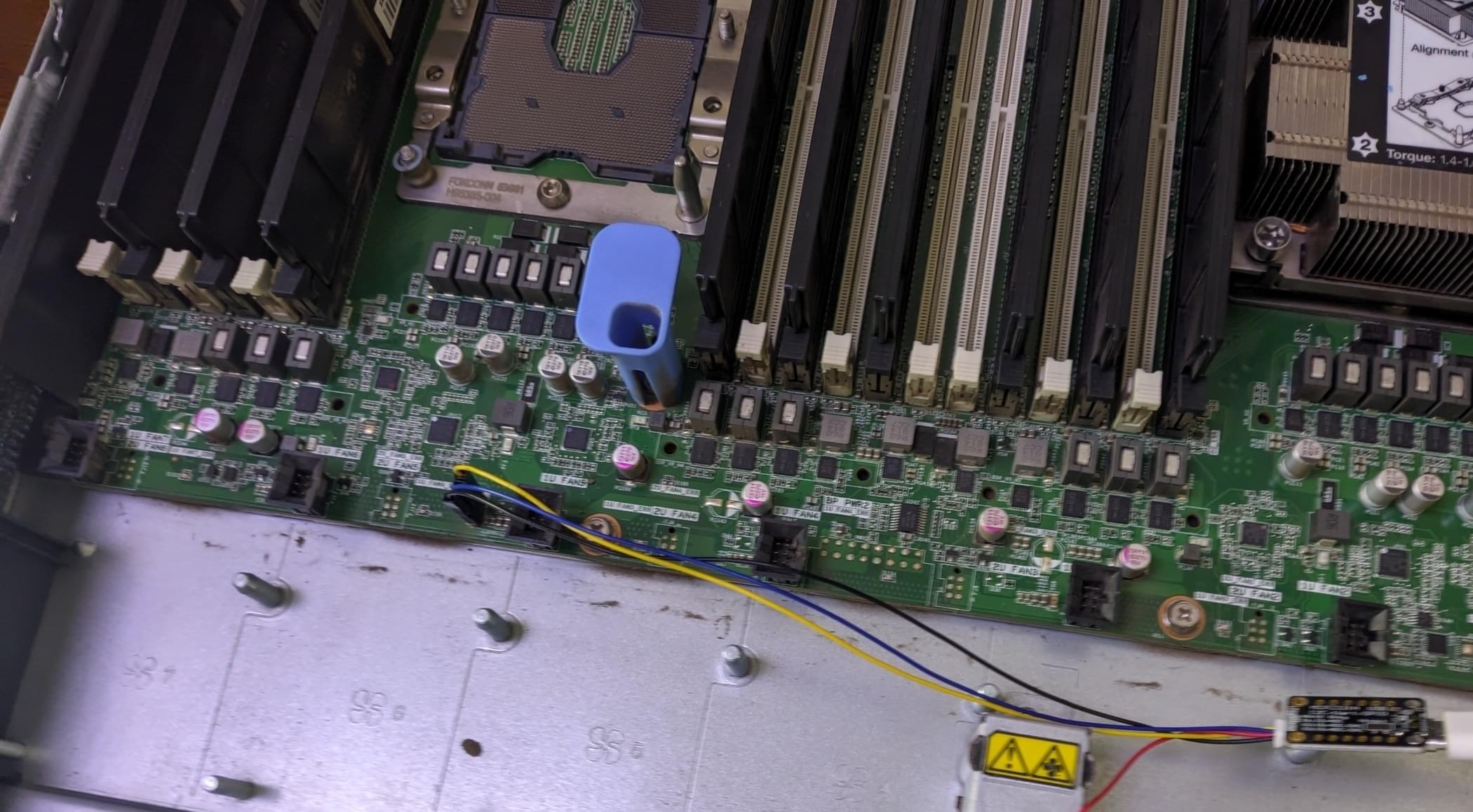

Find the VRM I2C header near CPU2 and the fan. Use a multimeter to confirm GND, then guess the other two pins—or just try all combos or refer to the image

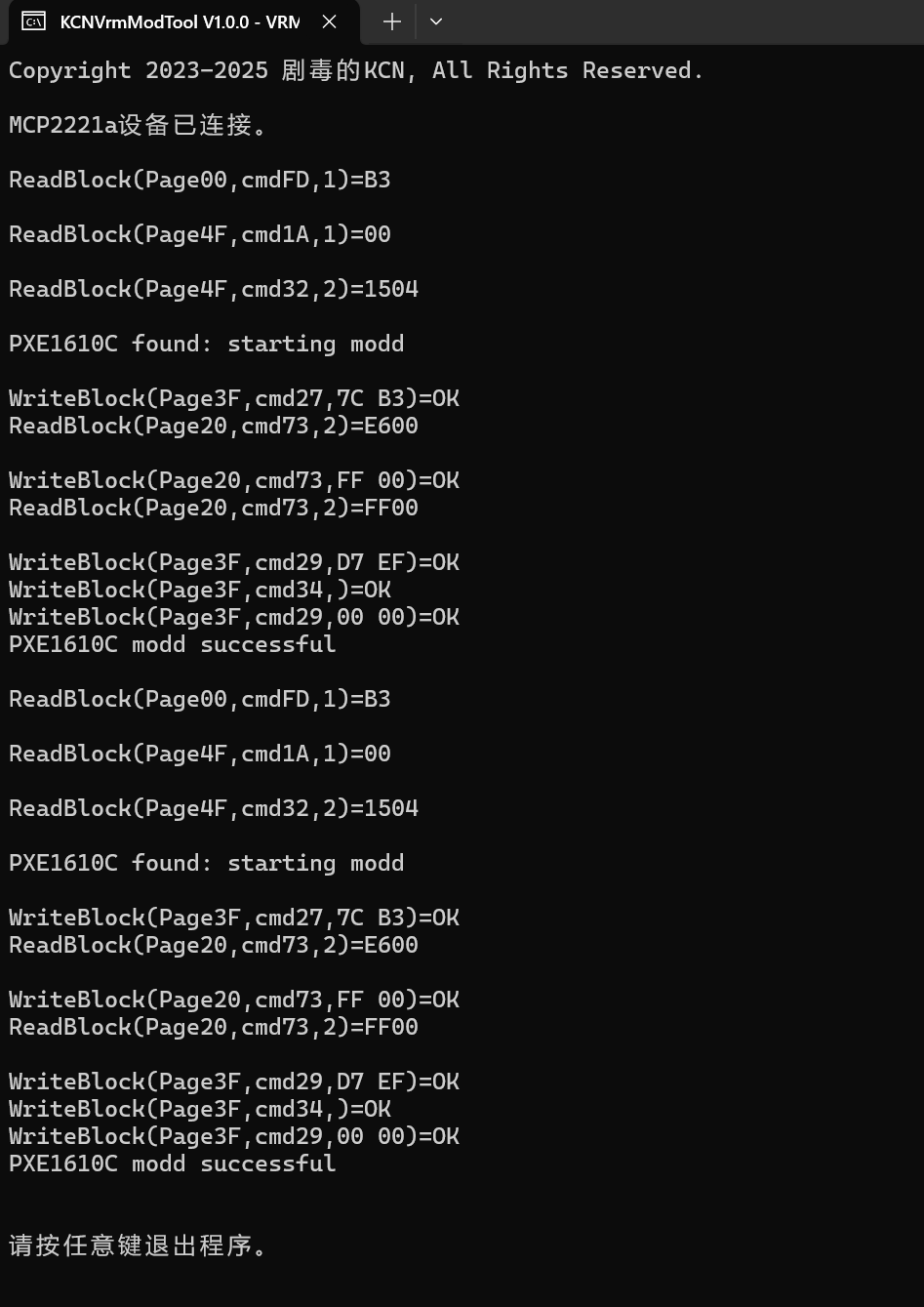

Tool output. Command: ./ModTool.exe -PXE1610C 74 76
The trick is sending I2C commands to the VRM chip to override the default current limit. The 8259CL only exceeds the 205W limit by 5W, so hardware damage under load seems unlikely. So far, peak CPU power hasn’t exceeded 420W (210W per CPU) under full load.
BIOS & BMC Update
According to a Bilibili post, the HR630x may require a BIOS update to support 8259CL and Optane. I even bought a test CPU just in case. But my unit must’ve been pre-updated—the seller probably did it—so it booted right away. No test CPU needed. Leaving this here for reference.
If you don’t know the BMC password, you can create a new admin user in BIOS (set Channel to 1), or reset it via ipmitool once in the OS.
Official Docs & IPMI Commands
Lenovo provides full manuals for this platform: https://datacentersupport.lenovo.com/us/en/products/servers/thinksystem-hyperscale/hr630x
Like many rack servers, installation tips and hardware notes are printed on the chassis lid. If you’re unsure about compatibility or installation, consult the manual. For example, installing LGA3647 CPUs is different from consumer platforms—you place the CPU on the heatsink first, then mount both onto the motherboard. There are two types of PCIe riser cards: one supports three half-height cards; the other supports one full-height + one half-height card. All covered in the manual.
Also, Lenovo provides a full IPMI command reference—no need to dig through forums or guess commands like with other OEM servers.
Fan Speed Control
With IPMI commands, I can manually adjust fan speeds to reduce noise. With some AI help, I quickly whipped up a fan control script that adjusts speed based on CPU temperature, either locally or over the network: https://gist.github.com/lyc8503/fb615f8874111bdbf896edd3f01443f0
By default, the fans run at 60% (~14,000 RPM), which is loud and consumes 35W just for fans. Out of curiosity, I tried 100%—20,000 RPM, 80W just for fans. The noise was pure psychological warfare. This 1U beast has terrifying fans.
Full Load
But with IPMI control, just 35% speed (~8900 RPM) keeps both CPUs at ~85°C under full load (420W total power), with other components under 55°C—perfectly acceptable. At this point, BMC reports total system power at 525W:
1 | # ipmitool -H 192.168.6.99 -I lanplus -U user -P password sdr |
Only extreme loads (e.g., stress -c 96) push CPU power to 420W. Most real-world full loads (like compiling) stay around 300W, so 35% fan speed is more than enough. When compiling the Linux kernel, 300W load is kept under 60°C.
Using a questionable decibel meter app on my phone, noise at 0.5m is about 65 dB. If placed on the balcony, it’s still audible in the living room through one door. But completely inaudible in the bedroom behind two doors—guess I’ll schedule heavy jobs for nighttime.
Idle
After installing Linux and booting normally, with no compute tasks, fans can drop to 10% (~3700 RPM). CPU temps ~50°C, idle power ~150W. Oddly, the PCH runs hotter:
1 | # ipmitool -H 192.168.6.99 -I lanplus -U user -P password sdr |
Such high idle power? I’ll just power it off when not in use…
I don’t have a power meter, so I haven’t tested BMC-only power when fully shut down. Online sources suggest ~15W, with fans adjustable down to 5% or lower. In cool environments, you could even turn fans off.
Installing the OS into Memory
My main storage is still on the i9-10900 platform. This new server has no drive bays for a boot disk. I could use a small USB drive or SSD, or set up PXE netboot.
But as mentioned, Optane PMem can be configured as a block device in BIOS. It can even be recognized as a boot device. So we can finally install the OS directly into memory, persistent across reboots—no external boot device needed.
Just enter BIOS Optane settings, reduce the Memory Mode ratio, reboot, and you’ll have free space to create a Region and Namespace. The resulting block device (e.g., /dev/pmem0) can host an EFI partition and boot the system. I went with EndeavourOS—its graphical installer correctly set up systemd-boot. I won’t admit I failed to manually install Arch due to missing kmod.

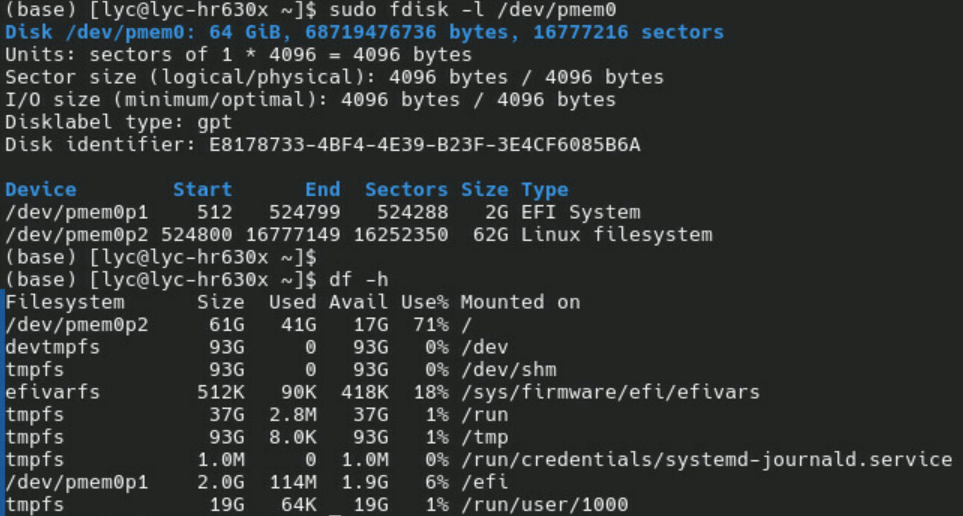

Finally, the old meme "install OS in RAM" becomes reality
Conclusion
I just got a new gigabit fiber connection at (another) home. Once I unlock the ONT, I’ll move the old i9-10900 HomeLab over, connect them via 10G NIC, and use NFS or iSCSI to mount storage. With local compute power now, I’ll save a lot of time compared to shipping data to a remote EPYC 9654 in Nanjing.
