This article is currently an experimental machine translation and may contain errors. If anything is unclear, please refer to the original Chinese version. I am continuously working to improve the translation.
I’m planning another upgrade for my home server setup this summer. I’ll keep the full architecture of the machine a small mystery for now — let’s first tweak the router configuration and lay a solid network foundation.
Originally, I considered going full All-In-One by virtualizing the router on the same host. After some deliberation, though, I decided against it. Still, I’m trying my best to minimize coupling between the router and the server.
Secure VPN Tunnel
I took the lazy route and went with WireGuard instead of OpenVPN — mainly because routing rules are simpler, the feature set is sufficient, and it’s lightweight and stealthy, making it less prone to network attacks.
For security, I used TLS with a self-signed certificate. The WireGuard config is straightforward, so I won’t paste it here. For a comparison with other connection methods, check this out.
For IPv6 DDNS, I’m using https://github.com/jeessy2/ddns-go, which runs stably on the AC2100 without consuming too many resources.
“Tencent Cloud” Version of AdguardHome
AdguardHome https://openwrt.org/docs/guide-user/services/dns/adguard-home is probably familiar to many.
I installed AdguardHome mainly to log internal network domain queries, block malicious and ad-serving domains, and prevent potential ISP-level DNS hijacking.
However, the AC2100’s legacy mt7621 CPU struggles to run AdguardHome smoothly — it often gets killed by OOM (Out of Memory). I didn’t want to move AdguardHome to my main server either, since that would mean my home network goes down whenever the server is offline, increasing unwanted coupling.
There’s an online AdguardHome-like service provided by Adguard DNS at https://adguard-dns.io/zh_cn/welcome.html, but DNS over TLS/HTTPS is heavily interfered with in mainland China, making it practically unusable.
Eventually, I found a decent alternative: Tencent Cloud’s Public DNS — https://console.dnspod.cn/publicdns/config.
This public resolver offers nearly identical functionality to AdguardHome, supports DNS over TLS/HTTPS within China, and provides three million free queries per month.

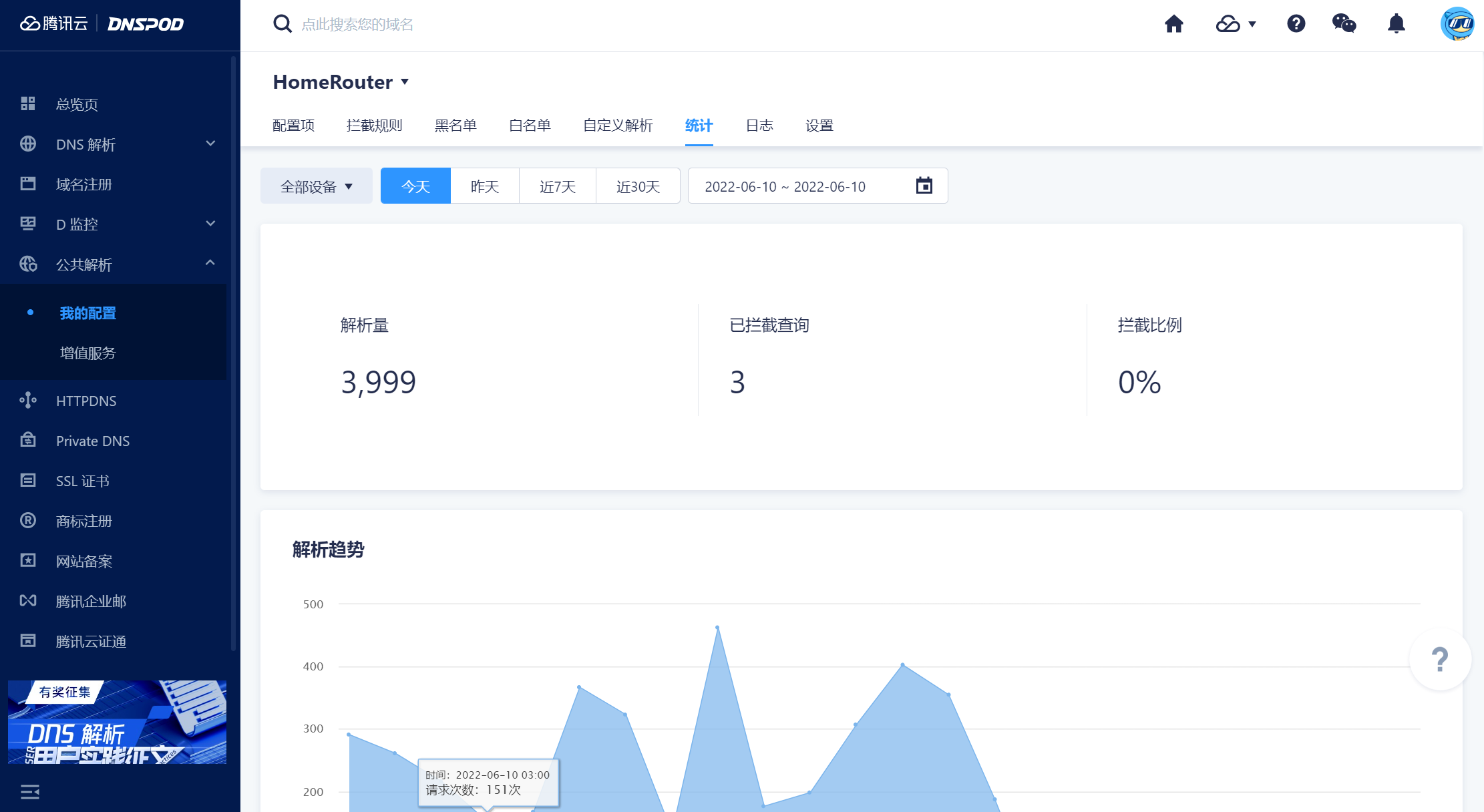

DnsPod
By installing SmartDNS on OpenWRT and setting the Public DNS addresses as the sole upstream servers, I can route all device DNS queries through it — achieving functionality very close to AdguardHome.

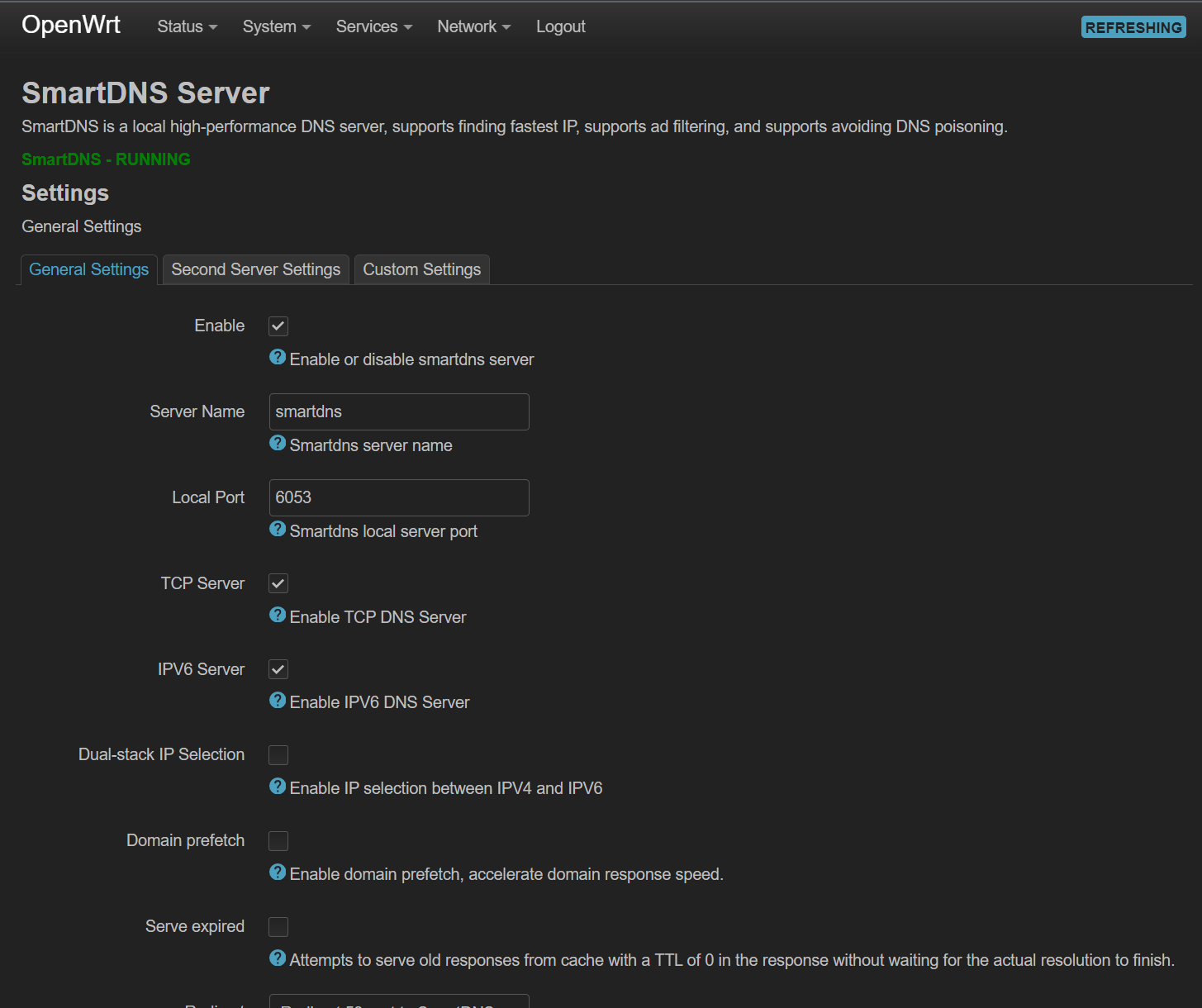

SmartDNS
This perfectly solves the performance issue, and the free quota is more than enough for typical usage.
p.s. Regarding privacy: Tencent Cloud’s service requires real-name verification, meaning your personal identity is directly linked to your DNS queries. If that concerns you, self-hosting AdguardHome might be a better choice. Personally, I route my own proxy traffic through a separate DNS, and most other household queries are for domestic websites — so I’m not too worried about data privacy in this case.
