This article marks the beginning of a (potentially long?) series, where I’ll document my journey and explorations in building an All-in-One (AIO) home server, along with all the pitfalls I’ve encountered along the way.
This post focuses on the hardware selection and configuration process.
I first got the idea of buying a personal server for home use two or three years ago—back when I saw those “mined-out” Snail星际 (Snail Interstellar) NAS kits and instantly fell in love. However, I was still in high school back then and didn’t have enough time to tinker with it, so I kept pushing it off until after the college entrance exam.
That said, I never stopped researching. Whenever I had free time, I’d dive into both hardware and software aspects, gradually refining my plan. (Budget? Just a joke.)
My envisioned setup evolved from the Snail Interstellar’s J1900, up to J3455, then to Xeon E3 / i3-8100, and eventually I even considered going all the way with an i5-10400, combining a primary desktop and NAS into one machine.
Until I came across HPE’s Gen10+…
Pros:
The Gen10+ is HPE’s server line specifically designed for home or small business use. It comes with many enterprise-grade features, such as iLO5, better ESXi support, high stability for long-term operation, user-friendly modular design, and reliable after-sales service. Overall, it’s likely much more hassle-free than building a DIY consumer-grade PC for a home lab.
Plus, the Gen10+ is significantly more power-efficient than second-hand servers from Taobao. Over a few years, the electricity savings alone can add up.
Cons:
If you’re only looking at raw performance and ignoring the server-specific design, it’s slightly less cost-effective than a consumer desktop.
Compared to used servers, it offers less expandability.
After weighing all factors and a lot of internal debate, I finally decided to go with the HP Gen10+.
I ordered it from Amazon Germany. Thanks to a 79 RMB Amazon Prime membership I bought earlier, the total—machine, customs tax, and express shipping—came out to just 3,381.17 RMB. Not bad for a steal. (The German listing has since been taken down; the current lowest available price is 3,927.37 RMB with tax and standard shipping…)

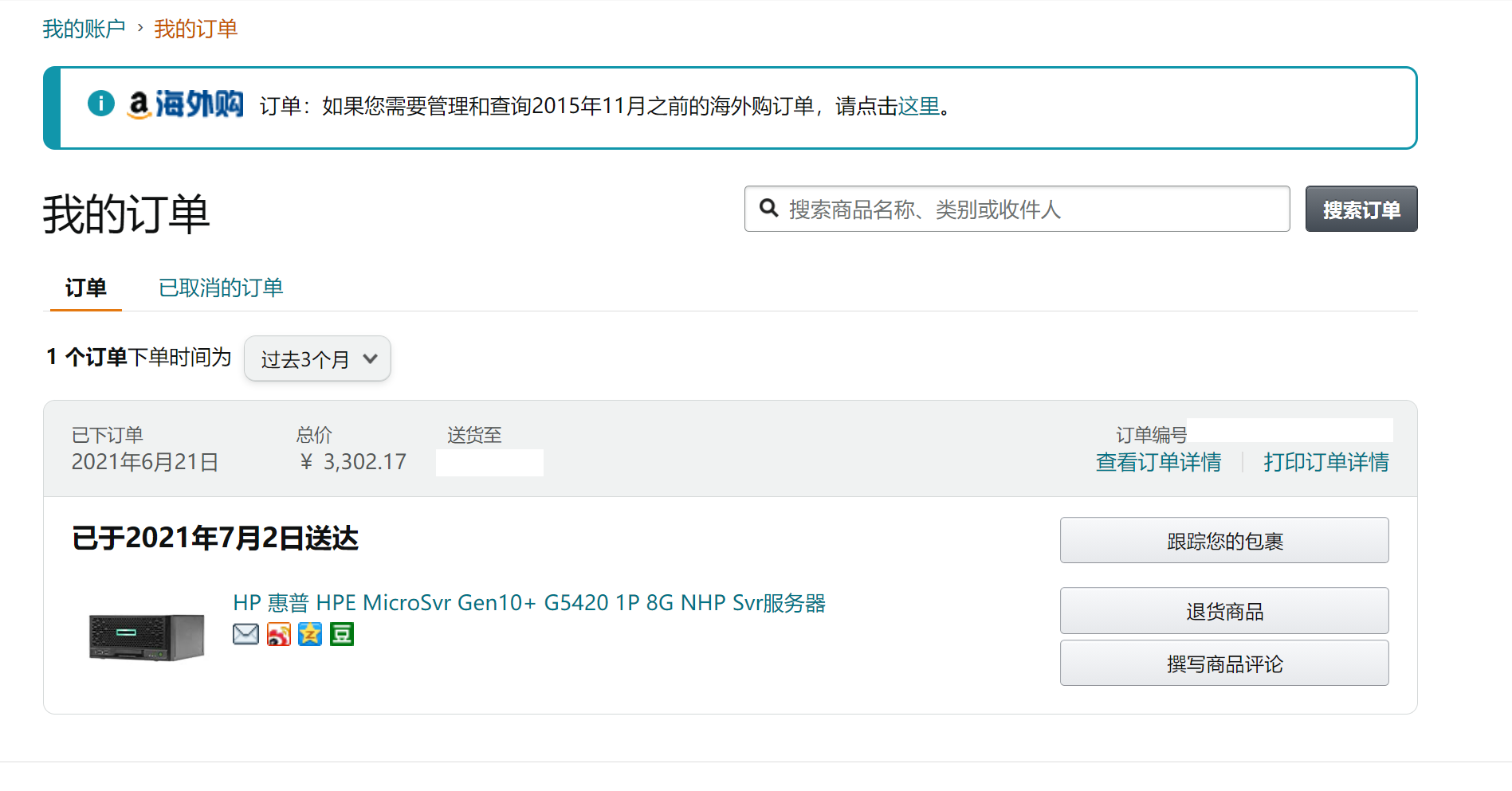

Order
Guess it really pays to buy early.
One thing to note: iLO5 is disabled by default on this machine, and you need an additional PCI-E network card to unlock it.
But here’s the catch—the iLO5 chip is already integrated on the motherboard; HPE just intentionally blocks access…
Following the guide here, I placed an order with JLCPCB (JiLiChuang). Spent just 5 RMB to make an iLO5 bypass card. It shares with LAN port 1, and tested perfectly with no issues. Schematic download
Later, I bought an iLO5 Advanced license from Taobao for 15 RMB, and paid another 20 RMB to unlock all iLO5 features.

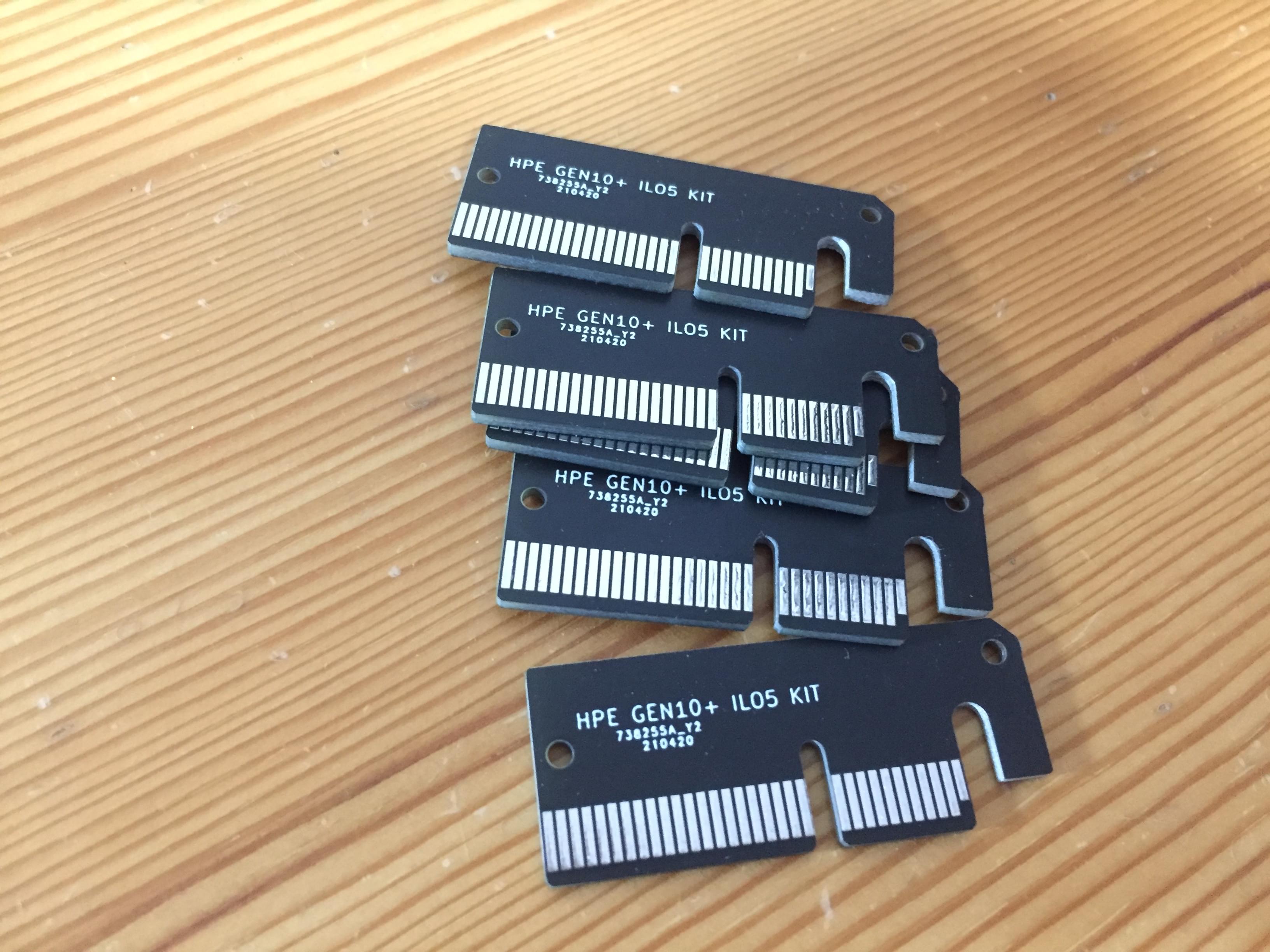

iLO5 Bypass Card

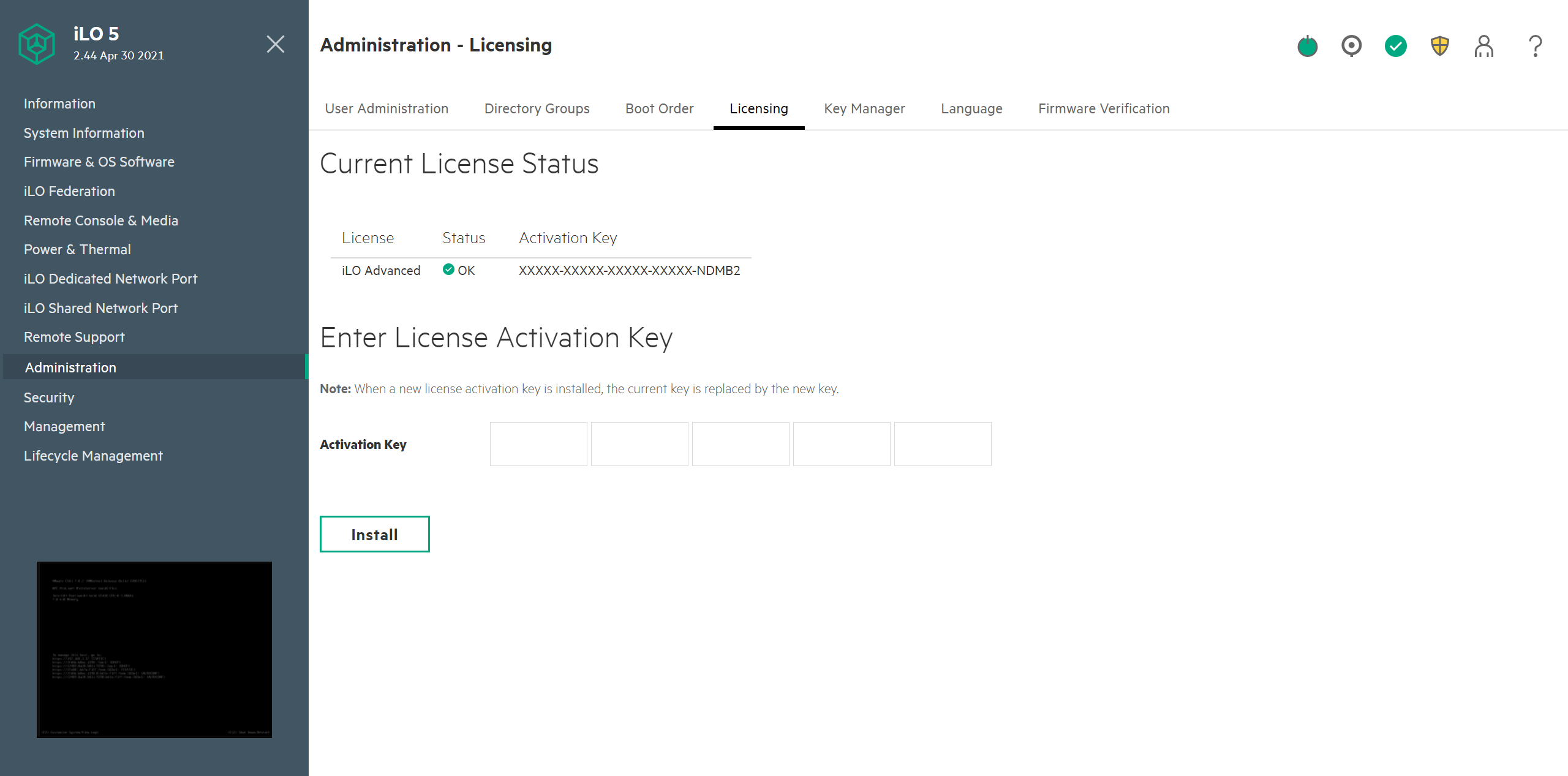

iLO5 Interface
